Inlet Filter Basket

The Clearstream Inlet Filter Basket is a permanent storm water quality inlet-based filtration device designed to capture silt, sediment, gross pollutants, and hydrocarbons from rainwater runoff.  Because these units are installed under the storm grate in parking areas and driveways, they are designed to handle H-20 loading by utilizing 14ga stainless steel frame to support the unit.
Framing members are welded for additional support and structural integrity. The transition tray is fabricated with a single ¼” thick vacuum molded UV resistant plastic which is both rigid and light, designed to support the filter basket without adding any unnecessary weight. Additionally, the tray includes a recessed area to accept a standard 3” hydrocarbon boom, eliminating the need to use any proprietary filtration devices to satisfy hydrocarbon filtration required by most storm water regulations.  The filter basket is constructed of 304 stainless steel which will not rust, corrode or warp under normal use.  All screens are made of 304 stainless to create a basket that will last for decades if properly maintained. All Clearstream filters and associated components carry a 5-year warranty against manufacturing defects.


Aqua-Filter Installation

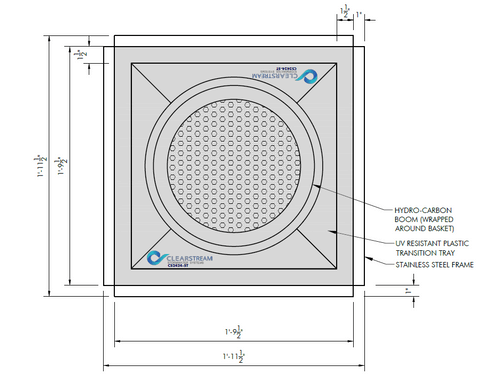

24″ x 24″ Detail

30″ x 30″ Detail
